Hybrid camera stabilizers, wearable camera stabilizers, Rotary Heads, Gimbals

PRODUCT DETAILED INFORMATION



ENDLESS 4 SILVERARROW

Payload inside the gimbal from 1kg to 8kgs or without the gimbal from 5kgs to 16kgs.



New release Basson Steady 8 Axis camera stabilizer with electronic horizon & pitch.  It is perfect for cameras from 2 Lbs = 1kgs up to 17,5 Lbs = 8kgs. And if you are just using the steady without the gimbal rotary head, you can use any camera from 11 lbs = 5kgs up to 36 lbs = 16 kgs. The weight supported inside the gimbal rotary head is lower due that the rotary head already weights around 7,6 kgs = 16,5 Lbs.

​

ENDLESS 4 BLACKBEE

Payload inside the gimbal head from 1kg to 6kgs or without the gimbal from 2kgs to 12kgs.

​

New release Basson Steady 8 Axis camera stabilizer with electronic horizon & pitch.  It is perfect for cameras from 2 Lbs = 1kgs up to 13 Lbs = 6kgs. And if you are just using the steady without the gimbal rotary head, you can use any camera from 4 Lbs = 2kgs up to 26 lbs = 12 kgs. The weight supported inside the gimbal rotary head is lower due that the rotary head already weights around 7,6 kgs = 16,5 Lbs.

​

​

TECHNICAL SPECIFICATIONS

​

This NEW HYBRID Basson Steady 8 axis camera stabilizer it's a mix between physic-mechanic and electronic, best of both worlds, it comes with an electronic board controller that will help you hold the camera HORIZONTALLY STABLE all the time.

And you still have the power to control the rotation with your hand on the gimbal as always to point your camera wherever you want.



With this version you can also lock the electronic pitch, depending on the shot, you may want to disconnect and lock the PITCH motor to control the PITCH and ROTATION manually with your hands as with any regular steady in order to let you point your camera wherever you want. This way you will be able to tilt up and down up the camera up to 45 degrees without loosing the Electronic horizon stabilization.



The main differences between Basson Steady camera stabilizer ENDLESS and Basson Steady camera stabilizer INFINIA, is that ENDLESS has dual electronic auto stabilized motors for horizon and pitch, and the Infinia version only one electronic auto stabilized motor for the horizon. Then the Infinia version is capable to hold 1 inch taller and also 1 inch longer cameras due that you don't need any extra space to swivel and balance the camera as it has no electronic pitch.



You can go from High mode to low mode in just 3 seconds.



Now supports bigger cameras, the maximum recommended camera sizes are, 48cm length, 20cms height and 18cm width, but as you see on the pictres it can hold cameras up to 50cm lenght such as the arri alexa mini with both motors ON, and if you turn off the pitch motor you can use cameras, up to 52 cm length, 22cm height and 18cm width.



Now it is compatible with most Dji RONIN RS2 and Dji RONIN 4D gimbals or other similar gimbals.



At the top of the center post now we provide D-TAP 14,8v to power your DJI Ronin RS2 & Ronin 4D gimbals. You can also attach your phone as a monitor to the handle of the steady to control the Dji Ronin RS2 gimbal with the App wireless.



Now you can mount to one the of the clamps on the handle of the steady a wireless Tilta Thumb controller for the DJI Ronin RS2 gimbal and also attach it to the handle of our steady to control the lens focus as well as to press record start and stop.



You can also add to the Dji gimbal the 3d focus system lidar scanner to the Dji Ronin RS2 and Dji Ronin 4d gimbals to add autofocus capability to non autofocus cinema lenses.



You will also be able to attach to one the of the clamps on the handle of the steady the monitor of the Ronin 4d. This wireless High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D. This enables remote control of focus and gimbal movements with high precision, starting and stopping of recording, which can now be remotely adjusted even when Ronin 4D is mounted on top of our Hybrid gimbal-steady camera stabilizer.



Also on top of the center post now it has HDMI, SDI, USB and D-TAP 14,8v and the plug with 25volt output to power the gimbal rotary head.



Also Inside the GImbal rotary head now it has SDI & HDMI, as well as D-TAP 14,8v to power your camera, yes as you hear, you can now remove the heavy battery from your ARRI or RED CINEMA cameras and use the power from the V-MOUNT batteries that you can put at the bottom of the center post. Then it also has a USB-C cable to power any accessory attached to the camera.



This new steady can be used in 3 different modes, FIRST as a regular steady, SECOND you can add any Dji RONIN gimbal on top of the steady, and THIRD with the gimbal rotary head.





The Electronic Rotary Head is Compatible with the following cameras AMONG MANY OTHER NOT LISTED HERE:

ARRI ALEXA mini, KINEFINITY MAVO, TERRA. RED Epic, Weapon, Dragon, Helium, Raven, Scarlet. CANON C200, C300, CANON 5D, and all DSLRs full frame such as PANASONIC S1, S1R, SONY A7, NIKON D850.

Also compatible with BLACK MAGIC POCKET pro 6k, and all micro 4/3 cameras such as PANASONIC GH5, GH5S, G9. Panasonic HC X1 4K Camcorder, Canon XF 400 & 405 4K Video Camera, Panasonic Hc-X1000 4K Camera, Panasonic AG DVX200 4K Pro Camcorder, Sony PXW-Z150 XDCAM Camcorder, Sony PXW-Z100 Pro 4k Camcorder, Sony FDRAX1 4K Video Camera, JVC HM-200 4K Camcorder, Sony FDR-AX100 4K Camera, JVC GY-HMQ10U 4K Camcorder, Sony PMW-F55 – Sonys Flagship for 4K, Panasonic Lumix DMC-GH6 4K Camera, Canon Cinema EOS C500 4K Camera, Sony NEX-FS700RH 4K Ready Super 35mm, and many more.





It works with SILENT MOTORS, It's noiceless, so you can now use at live events and also use the sound of your camera microphone.

It comes with dual battery power sources, it includes 3 V-mount sockets for 14,4v. batteries.



It's a ready to use stabilizer, as any other steady, and for the electronic rotary wheel you just need to press ON button to make it work.

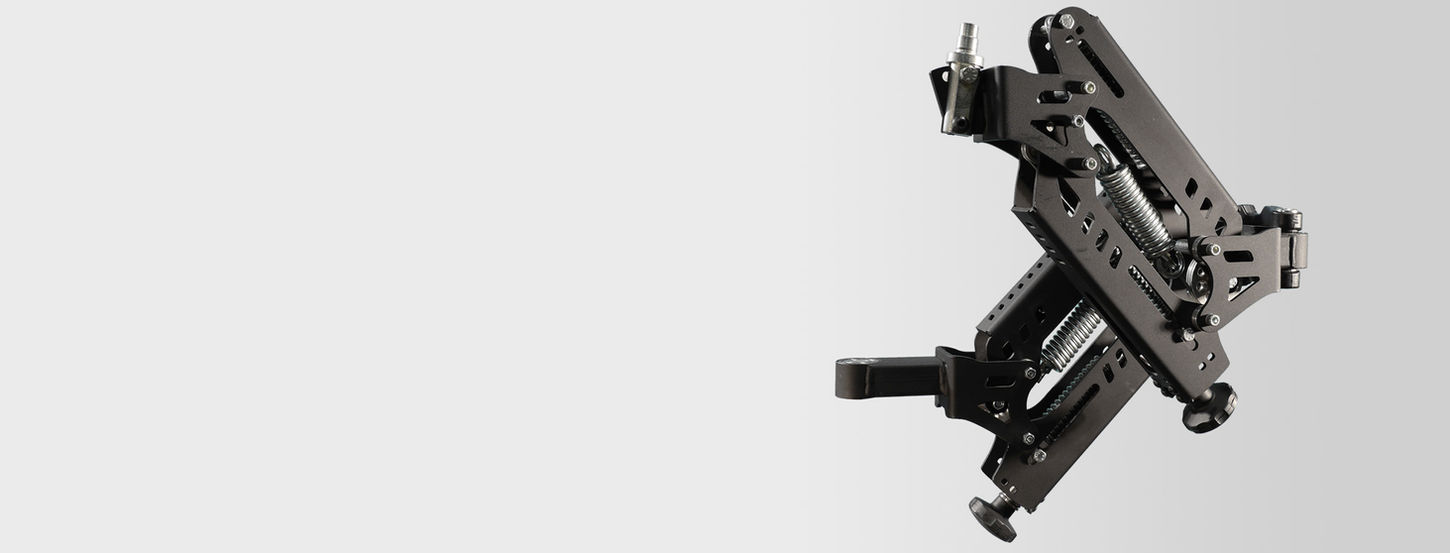

It also comes with a new generation of shock absorber arm, this new version works as an ISOLATE double shock absorber arm with 6 springs, top technology for camera stabilization and weight distribution.



This new arm at least DUPLICATE the time you can hold the steady on your body, it also increases the absorption and produce a noticeable reduced fatigue on your back as a result of the isolate effect of the arm.



The new CENTER POST can hold two LCD MONITORS, to do that now it comes with a NEW GIMBAL MONITOR MOUNT, that allows you to have the monitor pointing directly to your face at a reduced distance regardless of the angle you are pointing the camera and regardless of the axis of the steady.



You can now shoot backwards while walking forward with your steady without compromising framing your shoot and also allows you to verify without any effort if the FOCUS IS CORRECT OR NOT.



So there are NO MORE BLIND SPOTS, this new monitor mount comes with a 14.4volts power cable and also an HDMI cable, this new way to mount the LCD MONITOR comes with a male 1/4" screw to hold any LCD monitor, we recommend to use a small LCD monitor such as the 7" smallhd or the new 5" smallhd monitor.



The other option with this gimbal monitor mount, due that the new cameras comes with bluetooth, is to use your own small tablet such as an ipad mini, iphone or android smart phone to use it as a monitor just by adding any holder compatible with your device with a female 1/4" socket.



Another tip is that you can use the female lighter plug that is located at the bottom of the center post, to plug any a male lighter plug with USB charger with dual outputs to power or to charge any of the accessories you may want to use with this new hybrid camera stabilizer.



Today all new devices have can be charged via USB, so you can take advantage of that and power or charge any device such as the wireless lens controller hand unit and motor, as well as any other device such as your Cell Phone that can be used to monitor and to take full control of your video camera via app, or to power any USB led light, you can also charge or power any USB power bank.



For example on this photo we are using the the Male lighter plug Smart Car Finder from ZUS. that its not only a high quality dual USB charger but also a safety measure for the steady that thru an app on your cellphone will tell you where is your steady on a map. So each time you turn on the steady the app will point exactly where it is on a map thru the app on your cell phone.



This new Basson Steady camera stabilizer 8 axis hybrid camera stabilizers are easy comparable to the Arri trinity rig, or to the mk-v ar rotary head systems, all different designs and products with one thing in common, all high end hybrid electro mechanic gimbal camera stabilizers. All brand names, models, trademarks, and registered trademarks mentioned in this description are property of their legal owners and are being used here only for description.



Packing List

Packing List Basson Steady camera stabilizer

1 Hybrid Rotary Wheel with electronic horizon

1 Telescopic Anamorphic post ready to mount 3 LCD monitors

1 NEW ISOLATE double shock absorber arm with decompressor with 6 springs and triple pulley system on each arm

1 Triple padded vest, with extended arm to reduce fatigue and swivel arm

1 Gimbal monitor mount, with 3 articulated clamps

2 Camera micrometric sliding plates with pivot head, the plate on top now its quick release

3 Sockets for 14,8v V-mount batteries

1 New bearing mounted low mass triaxial gimbal handle

1 Lighted Lcd display to see battery level, 2 female lighter plugs 12v positive to center

2 HDMI Wires already installed inside the post. (HDMI+SDI+USB-C+DTAP)

1 Introductory Cd rom, with strat up demo video as well as a pdf manual

1 Docking bracket adapter to adapted to any focus stand capable to hold 50kgs = 100 lbs

1 Warranty card + set up guide



We provide LIFETIME SUPPORT direct from our factory to the hole world, by email or phone 365 days a year

Picture taken with V-mount battery, camera and Lcd monitors not included



WHAT ELSE DO YOU NEED, THAT IT IS NOT INCLUDED THAT WE DO NOT SELL:

You will need only one lcd monitor of 5 to 7 inches a compact design to mount it on the handle, we recommend a 5 inch lcd monitor because it will be closer to your eyes at just on feet and also because you need a compact size.

The lcd monitors must have HDMI input and output.You can also use a second lcd monitor at the bottom of the post just as counterweight and for balancing the seady, with one lcd monitor of 7 inches or up to 10 inches you will be fine to mount it on the normal position at the bottom of the center post, both Lcd monitors must be 12v. to 14,8volts, that is the standard for all video monitors.

You can also have on the camera on the side or behind your camera a third LCD monitor with SDI for a good reading of all professional specs, and from this monitor you can output via hdmi the video signal to the other lcd monitors on the camera stabilizer, then of course if you are not using HDMI video signal at all you can change the HDMI wires that goes inside the center post, and change it for SDI cables.

The cable model 1855A Belden (Digital Video, 6 Gb/s UHDTV resolution of 3,840 x 2,160 pixels, HD-SDI 1080p) 75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid. You can check the full specs of the cable under the follwing link.https://www.belden.com/products/cable/video-cable/coaxial-video-cable/1855a.

The 3 v-mount batteries that you can put on the steady are only to power the lcd monitors, so to power your camera you must put your own battery behind the camera as always.

So you will have plenty of battery with 3 v-mount batteries to power 3 lcd monitors all day.



- Any Stand for lights capable to support from 25kgs /50 Lbs at a height of 4 feet /1.30mts

- At least 3 V-MOUNT batteries one of 90wh and the other 2 can be any size we recommend 130wh or more, and its chargers

​



We accept bank transfer as well as PAY PAL payments, with this last option we will only ship your purchase to Pay Pal verified address, and also paypal fees must be paid by the customer, this fees increase the price a 5,5%.

The price of the steady includes FREE shipping Worldwide door to door delivery by Fedex.

--------------------------------------



Instructions and Support, and After sales Support:



CD ROM and PDF MANUAL:

The purchase of all stabilizers includes a CD rom that includes start up demo videos as well as a manual in PDF format with the instructions to start using it by doing it yourself without the need of our help which is how all the clients do it normally.



Then you can also arrange with as for a:



Free Start up explanation at our factory in Argentina:

If you prefer you can send someone from your company to our factory in Buenos Aires Argentina to receive the basics instructions in person about how to use this equipment this is free of charge and the explanation may take some hours normally less than 3 hours, this has No additional cost, just call us to coordinate your visit to our factory.



FACTORY REFURBISHED:

If available the factory refurbished version, for more details on Factory refurbished items please go to SUPPORT section WARRANTY to read more.

In this particular case the factory refurbished and the regular versions have the same max payload, In other products see carefully that the max payload may be different when compaired to the regular version.
